#include <OneDimElasticityModule.h>

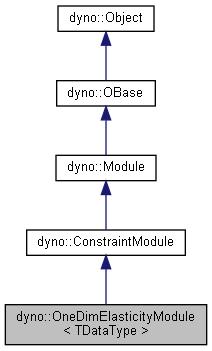

Inheritance diagram for dyno::OneDimElasticityModule< TDataType >:

[legend]

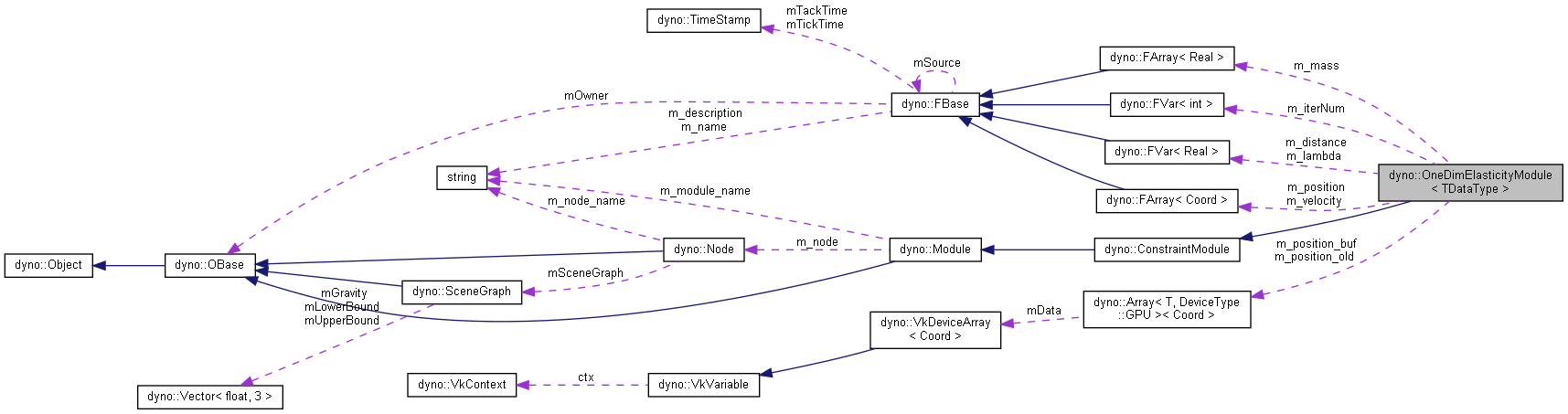

Collaboration diagram for dyno::OneDimElasticityModule< TDataType >:

[legend]

Public Types
typedef TDataType::Real	Real

typedef TDataType::Coord	Coord

Public Types inherited from dyno::OBase
typedef std::vector< FBase * >	FieldVector

typedef std::map< FieldID, FBase * >	FieldMap

Public Member Functions
	OneDimElasticityModule ()

	~OneDimElasticityModule () override

void	constrain () override

void	solveElasticity ()

void	setIterationNumber (int num)

int	getIterationNumber ()

void	setMaterialStiffness (Real stiff)

Public Member Functions inherited from dyno::ConstraintModule
	ConstraintModule ()

	~ConstraintModule () override

std::string	getModuleType () override

Public Member Functions inherited from dyno::Module
	Module (std::string name="default")

	~Module (void) override

bool	initialize ()

void	update ()

void	setName (std::string name)

std::string	getName () override

virtual void	setParentNode (Node *node)
	Set the parent node.

Node *	getParentNode ()

SceneGraph *	getSceneGraph ()

bool	isInitialized ()

bool	attachField (FBase *field, std::string name, std::string desc, bool autoDestroy=true) override
	Attach a field to Base.

bool	isInputComplete ()
	Check the completeness of input fields.

bool	isOutputCompete ()

	DEF_VAR (bool, ForceUpdate, false, "")

void	setUpdateAlways (bool b)
	Set the update strategy for the module.

Public Member Functions inherited from dyno::OBase
	OBase ()

	~OBase () override

virtual std::string	caption ()
	Return the caption.

virtual bool	captionVisible ()
	Whether to hide the caption in the GUI.

virtual std::string	description ()
	Return a description for the node or module, override this function to support user-defined description.

bool	addField (FBase *data)
	Add a field to Base FieldID will be set to the name of Field by default.

bool	addField (FieldID name, FBase *data)
	Add a field to Base.

bool	addFieldAlias (FieldID name, FBase *data)

bool	addFieldAlias (FieldID name, FBase *data, FieldMap &fieldAlias)

bool	findField (FBase *data)
	Find a field by its pointer.

bool	findFieldAlias (const FieldID name)
	Find a field by its name.

bool	findFieldAlias (const FieldID name, FieldMap &fieldAlias)
	Find a field in fieldAlias by its name This function is typically called by other functions.

bool	removeField (FBase *data)
	Remove a field by its pointer.

bool	removeFieldAlias (const FieldID name)
	Remove a field by its name.

bool	removeFieldAlias (const FieldID name, FieldMap &fieldAlias)

FBase *	getField (const FieldID name)
	Return a field by its name.

std::vector< FBase * > &	getAllFields ()

template<typename T >
T *	getField (FieldID name)

bool	isAllFieldsReady ()
	Check the completeness of all required fields.

std::vector< FieldID >	getFieldAlias (FBase *data)

int	getFieldAliasCount (FBase *data)

void	setBlockCoord (float x, float y)

float	bx ()

float	by ()

bool	findInputField (FBase *field)

bool	addInputField (FBase *field)

bool	removeInputField (FBase *field)

std::vector< FBase * > &	getInputFields ()

bool	findOutputField (FBase *field)

bool	addOutputField (FBase *field)

bool	addToOutput (FBase *field)

bool	removeOutputField (FBase *field)

bool	removeFromOutput (FBase *field)

std::vector< FBase * > &	getOutputFields ()

bool	findParameter (FBase *field)

bool	addParameter (FBase *field)

bool	removeParameter (FBase *field)

std::vector< FBase * > &	getParameters ()

Public Member Functions inherited from dyno::Object
	Object ()

virtual	~Object ()

ObjectId	objectId ()

Public Attributes
FVar< Real >	m_distance
	Horizon A positive number represents the radius of neighborhood for each point.

DeviceArrayField< Coord >	m_position
	Particle position.

DeviceArrayField< Coord >	m_velocity
	Particle velocity.

DeviceArrayField< Real >	m_mass

Protected Member Functions
bool	initializeImpl () override

void	updateVelocity ()

Protected Member Functions inherited from dyno::ConstraintModule
void	updateImpl () override

Protected Member Functions inherited from dyno::Module
virtual void	preprocess ()

virtual void	postprocess ()

virtual bool	validateInputs ()

virtual bool	validateOutputs ()

virtual bool	requireUpdate ()

virtual void	updateStarted ()
	Two functions called at the beginning and end of update() used for debug.

virtual void	updateEnded ()

Protected Attributes
FVar< Real >	m_lambda
	Lame parameters m_lambda controls the isotropic part while mu controls the deviatoric part.

DArray< Coord >	m_position_old

DArray< Coord >	m_position_buf

Protected Attributes inherited from dyno::OBase
std::vector< FBase * >	fields_input

std::vector< FBase * >	fields_output

std::vector< FBase * >	fields_param

Private Attributes
FVar< int >	m_iterNum

Additional Inherited Members
Static Public Member Functions inherited from dyno::Object
static bool	registerClass (ClassInfo *ci)

static Object *	createObject (std::string name)

static std::map< std::string, ClassInfo * > *	getClassMap ()

static ObjectId	baseId ()
	Base Id.
