Inheritance diagram for WtNodeFlowWidget:

[legend]

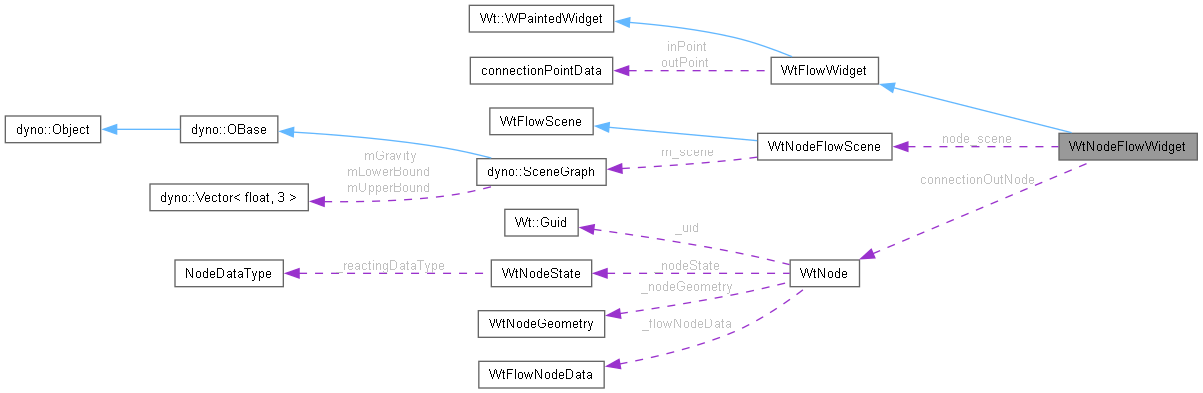

Collaboration diagram for WtNodeFlowWidget:

[legend]

Public Member Functions
	WtNodeFlowWidget (std::shared_ptr< dyno::SceneGraph > scene)

	~WtNodeFlowWidget ()

void	onMouseMove (const Wt::WMouseEvent &event) override

void	onMouseWentDown (const Wt::WMouseEvent &event) override

void	onMouseWentUp (const Wt::WMouseEvent &event) override

void	onKeyWentDown () override

void	deleteNode (WtNode &n)

void	disconnectionsFromNode (WtNode &node)

void	moveNode (WtNode &n, const Wt::WPointF &newLocaton)

void	enableRendering (WtNode &n, bool checked)

void	enablePhysics (WtNode &n, bool checked)

void	setSelectNode (std::shared_ptr< dyno::Node > node)

Public Member Functions inherited from WtFlowWidget
	WtFlowWidget (std::shared_ptr< dyno::SceneGraph > scene)

virtual	~WtFlowWidget ()=default

void	onMouseWheel (const Wt::WMouseEvent &event)

void	zoomIn ()

void	zoomOut ()

void	reorderNode ()

void	updateAll ()

bool	checkMouseInRect (Wt::WPointF mousePoint, WtFlowNodeData nodeData)

bool	checkMouseInPoints (Wt::WPointF mousePoint, WtFlowNodeData nodeData, PortState portState)

Wt::WPainterPath	cubicPath (Wt::WPointF source, Wt::WPointF sink)

std::pair< Wt::WPointF, Wt::WPointF >	pointsC1C2 (Wt::WPointF source, Wt::WPointF sink)

void	drawSketchLine (Wt::WPainter *painter, Wt::WPointF source, Wt::WPointF sink)

Wt::Signal< int > &	selectNodeSignal ()

Wt::Signal &	updateCanvas ()

Protected Member Functions
void	paintEvent (Wt::WPaintDevice *paintDevice)

bool	checkMouseInAllRect (Wt::WPointF mousePoint)

bool	checkMouseInHotKey0 (Wt::WPointF mousePoint, WtFlowNodeData nodeData)

bool	checkMouseInHotKey1 (Wt::WPointF mousePoint, WtFlowNodeData nodeData)

Wt::WPointF	getPortPosition (Wt::WPointF origin, connectionPointData portData)

void	disconnect (std::shared_ptr< Node > exportNode, std::shared_ptr< Node > inportNode, connectionPointData inPoint, connectionPointData outPoint, WtNode inWtNode, WtNode outWtNode)

Protected Attributes
WtNodeFlowScene *	node_scene = nullptr

std::map< dyno::ObjectId, WtNode * >	nodeMap

WtNode *	connectionOutNode

std::shared_ptr< Node >	mOutNode

std::vector< sceneConnection >	sceneConnections

Protected Attributes inherited from WtFlowWidget
double	mZoomFactor

Wt::WPointF	mLastMousePos

Wt::WPointF	mLastDelta

bool	isDragging = false

bool	canMoveNode = false

bool	reorderFlag = true

bool	mEditingEnabled = true

bool	drawLineFlag = false

Wt::WPointF	mTranslate = Wt::WPointF(0, 0)

Wt::WPointF	mTranslateNode = Wt::WPointF(0, 0)

Wt::WPointF	mMousePoint = Wt::WPointF(0, 0)

std::shared_ptr< dyno::SceneGraph >	mScene

Wt::Signal< int >	_selectNodeSignal

Wt::Signal	_updateCanvas

int	selectType = -1

int	selectedNum = 0

Wt::WPointF	sourcePoint

Wt::WPointF	sinkPoint

connectionPointData	outPoint

connectionPointData	inPoint

Detailed Description

Definition at line 21 of file WtNodeFlowWidget.h.

Constructor & Destructor Documentation

WtNodeFlowWidget::WtNodeFlowWidget ( std::shared_ptr< dyno::SceneGraph > scene )

Definition at line 6 of file WtNodeFlowWidget.cpp.

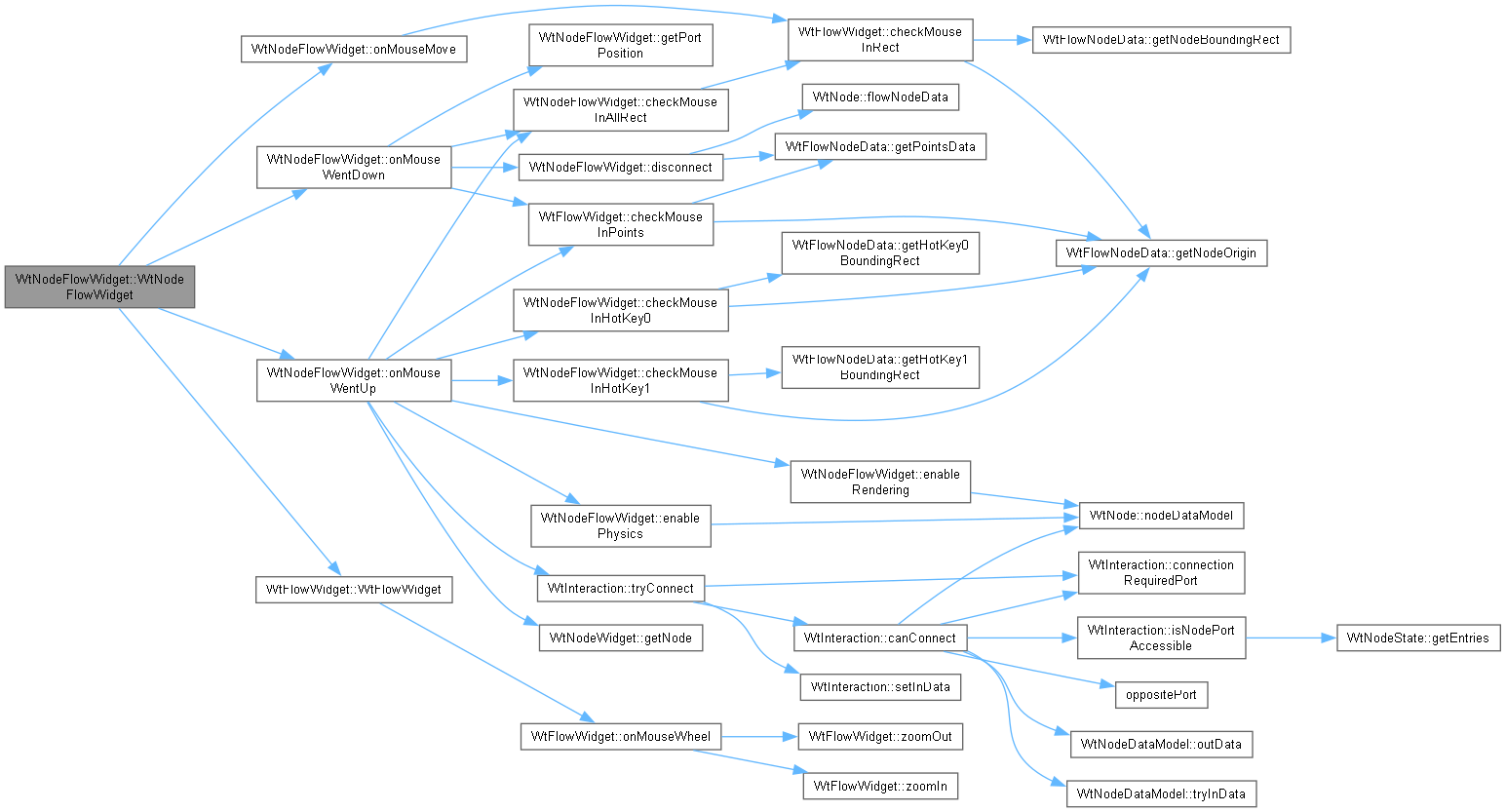

Here is the call graph for this function:

WtNodeFlowWidget::~WtNodeFlowWidget ( )

Definition at line 16 of file WtNodeFlowWidget.cpp.

bool WtNodeFlowWidget::checkMouseInAllRect ( Wt::WPointF mousePoint )

protected

Definition at line 282 of file WtNodeFlowWidget.cpp.

Here is the call graph for this function:

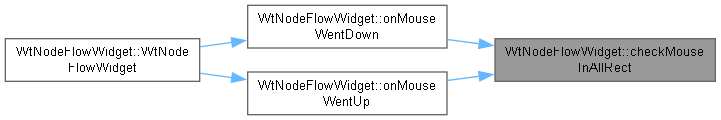

Here is the caller graph for this function:

bool WtNodeFlowWidget::checkMouseInHotKey0	(	Wt::WPointF	mousePoint,
		WtFlowNodeData	nodeData )

protected

Definition at line 299 of file WtNodeFlowWidget.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bool WtNodeFlowWidget::checkMouseInHotKey1	(	Wt::WPointF	mousePoint,
		WtFlowNodeData	nodeData )

protected

Definition at line 314 of file WtNodeFlowWidget.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void WtNodeFlowWidget::deleteNode ( WtNode & n )

Definition at line 356 of file WtNodeFlowWidget.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void WtNodeFlowWidget::disconnect	(	std::shared_ptr< Node >	exportNode,
		std::shared_ptr< Node >	inportNode,
		connectionPointData	inPoint,
		connectionPointData	outPoint,
		WtNode *	inWtNode,
		WtNode *	outWtNode )
