ofbx.cpp File Reference

#include "ofbx.h"
#include "miniz.h"
#include <cassert>
#include <math.h>
#include <ctype.h>
#include <memory>
#include <numeric>
#include <string>
#include <unordered_map>
#include <vector>

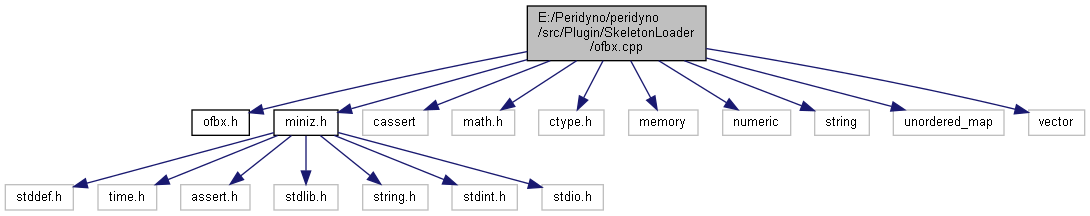

Include dependency graph for ofbx.cpp:

Go to the source code of this file.

Classes
struct	ofbx::Allocator
struct	ofbx::Allocator::Page
struct	ofbx::Temporaries
struct	ofbx::Video
struct	ofbx::Error
struct	ofbx::OptionalError< T >
struct	ofbx::Header
struct	ofbx::Cursor
struct	ofbx::Property
struct	ofbx::Element
struct	ofbx::MeshImpl
struct	ofbx::MaterialImpl
struct	ofbx::LimbNodeImpl
struct	ofbx::NullImpl
struct	ofbx::NodeAttributeImpl
struct	ofbx::GeometryImpl
struct	ofbx::GeometryImpl::NewVertex
struct	ofbx::ShapeImpl
struct	ofbx::ClusterImpl
struct	ofbx::AnimationStackImpl
struct	ofbx::AnimationCurveImpl
struct	ofbx::SkinImpl
struct	ofbx::BlendShapeChannelImpl
struct	ofbx::BlendShapeImpl
struct	ofbx::PoseImpl
struct	ofbx::TextureImpl
struct	ofbx::Root
struct	ofbx::Scene
struct	ofbx::Scene::Connection
struct	ofbx::Scene::ObjectPair
struct	ofbx::AnimationCurveNodeImpl
struct	ofbx::AnimationCurveNodeImpl::Curve
struct	ofbx::AnimationLayerImpl
struct	ofbx::ParseGeometryJob

Namespaces
namespace	ofbx

Macros
#define	get_property(name, field, type, getter)
#define	get_time_property(name, field, type, getter)

Functions
static void	ofbx::setTranslation (const Vec3 &t, Matrix *mtx)
static Vec3	ofbx::operator- (const Vec3 &v)
static Matrix	ofbx::operator* (const Matrix &lhs, const Matrix &rhs)
static Matrix	ofbx::makeIdentity ()
static Matrix	ofbx::rotationX (double angle)
static Matrix	ofbx::rotationY (double angle)
static Matrix	ofbx::rotationZ (double angle)
static Matrix	ofbx::getRotationMatrix (const Vec3 &euler, RotationOrder order)
double	ofbx::fbxTimeToSeconds (i64 value)
i64	ofbx::secondsToFbxTime (double value)
static Vec3	ofbx::operator* (const Vec3 &v, float f)
static Vec3	ofbx::operator+ (const Vec3 &a, const Vec3 &b)
template<int SIZE>
static bool	ofbx::copyString (char(&destination)[SIZE], const char *source)
template<typename T >
static bool	ofbx::parseArrayRaw (const Property &property, T *out, int max_size)
template<typename T >
static bool	ofbx::parseBinaryArray (const Property &property, std::vector< T > *out)
static bool	ofbx::parseDouble (Property &property, double *out)
static const Element *	ofbx::findChild (const Element &element, const char *id)
static IElement *	ofbx::resolveProperty (const Object &obj, const char *name)
static int	ofbx::resolveEnumProperty (const Object &object, const char *name, int default_value)
static Vec3	ofbx::resolveVec3Property (const Object &object, const char *name, const Vec3 &default_value)
static bool	ofbx::decompress (const u8 *in, size_t in_size, u8 *out, size_t out_size)
template<typename T >
static OptionalError< T >	ofbx::read (Cursor *cursor)
static OptionalError< DataView >	ofbx::readShortString (Cursor *cursor)
static OptionalError< DataView >	ofbx::readLongString (Cursor *cursor)
static OptionalError< Property * >	ofbx::readProperty (Cursor *cursor, Allocator &allocator)
static OptionalError< u64 >	ofbx::readElementOffset (Cursor *cursor, u16 version)
static OptionalError< Element * >	ofbx::readElement (Cursor *cursor, u32 version, Allocator &allocator)
static bool	ofbx::isEndLine (const Cursor &cursor)
static void	ofbx::skipInsignificantWhitespaces (Cursor *cursor)
static void	ofbx::skipLine (Cursor *cursor)
static void	ofbx::skipWhitespaces (Cursor *cursor)
static bool	ofbx::isTextTokenChar (char c)
static DataView	ofbx::readTextToken (Cursor *cursor)
static OptionalError< Property * >	ofbx::readTextProperty (Cursor *cursor, Allocator &allocator)
static OptionalError< Element * >	ofbx::readTextElement (Cursor *cursor, Allocator &allocator)
static OptionalError< Element * >	ofbx::tokenizeText (const u8 *data, size_t size, Allocator &allocator)
static OptionalError< Element * >	ofbx::tokenize (const u8 *data, size_t size, u32 &version, Allocator &allocator)
static void	ofbx::parseTemplates (const Element &root)
void	ofbx::parseVideo (Scene &scene, const Element &element, Allocator &allocator)
struct OptionalError< Object * >	ofbx::parseTexture (const Scene &scene, const Element &element, Allocator &allocator)
struct OptionalError< Object * >	ofbx::parsePose (const Scene &scene, const Element &element, Allocator &allocator)
template<typename T >
static OptionalError< Object * >	ofbx::parse (const Scene &scene, const Element &element, Allocator &allocator)
static OptionalError< Object * >	ofbx::parseCluster (const Scene &scene, const Element &element, Allocator &allocator)
static OptionalError< Object * >	ofbx::parseNodeAttribute (const Scene &scene, const Element &element, Allocator &allocator)
static OptionalError< Object * >	ofbx::parseLimbNode (const Scene &scene, const Element &element, Allocator &allocator)
static OptionalError< Object * >	ofbx::parseMesh (const Scene &scene, const Element &element, Allocator &allocator)
static OptionalError< Object * >	ofbx::parseMaterial (const Scene &scene, const Element &element, Allocator &allocator)
template<typename T >
static bool	ofbx::parseTextArrayRaw (const Property &property, T *out, int max_size)
template<typename T >
const char *	ofbx::fromString (const char *str, const char *end, T *val)
template<>
const char *	ofbx::fromString< int > (const char *str, const char *end, int *val)
template<>
const char *	ofbx::fromString< u64 > (const char *str, const char *end, u64 *val)
template<>
const char *	ofbx::fromString< i64 > (const char *str, const char *end, i64 *val)
template<>
const char *	ofbx::fromString< double > (const char *str, const char *end, double *val)
template<>
const char *	ofbx::fromString< float > (const char *str, const char *end, float *val)
const char *	ofbx::fromString (const char *str, const char *end, double *val, int count)
template<>
const char *	ofbx::fromString< Vec2 > (const char *str, const char *end, Vec2 *val)
template<>
const char *	ofbx::fromString< Vec3 > (const char *str, const char *end, Vec3 *val)
template<>
const char *	ofbx::fromString< Vec4 > (const char *str, const char *end, Vec4 *val)
template<>
const char *	ofbx::fromString< Matrix > (const char *str, const char *end, Matrix *val)
template<typename T >
static void	ofbx::parseTextArray (const Property &property, std::vector< T > *out)
template<typename T >
static bool	ofbx::parseDoubleVecData (Property &property, std::vector< T > *out_vec, std::vector< float > *tmp)
template<typename T >
static bool	ofbx::parseVertexData (const Element &element, const char *name, const char *index_name, std::vector< T > *out, std::vector< int > *out_indices, GeometryImpl::VertexDataMapping *mapping, std::vector< float > *tmp)
static int	ofbx::decodeIndex (int idx)
static int	ofbx::codeIndex (int idx, bool last)
template<typename T >
static void	ofbx::splat (std::vector< T > *out, GeometryImpl::VertexDataMapping mapping, const std::vector< T > &data, const std::vector< int > &indices, const std::vector< int > &original_indices)
template<typename T >
static void	ofbx::remap (std::vector< T > *out, const std::vector< int > &map)
static OptionalError< Object * >	ofbx::parseAnimationCurve (const Scene &scene, const Element &element, Allocator &allocator)
static int	ofbx::getTriCountFromPoly (const std::vector< int > &indices, int *idx)
static void	ofbx::add (GeometryImpl::NewVertex &vtx, int index)
static void	ofbx::triangulate (const std::vector< int > &old_indices, std::vector< int > *to_old_vertices, std::vector< int > *to_old_indices)
static void	ofbx::buildGeometryVertexData (GeometryImpl *geom, const std::vector< Vec3 > &vertices, const std::vector< int > &original_indices, std::vector< int > &to_old_indices, bool triangulationEnabled)
static OptionalError< Object * >	ofbx::parseGeometryMaterials (GeometryImpl *geom, const Element &element, const std::vector< int > &original_indices)
static OptionalError< Object * >	ofbx::parseGeometryUVs (GeometryImpl *geom, const Element &element, const std::vector< int > &original_indices, const std::vector< int > &to_old_indices, Temporaries *tmp)
static OptionalError< Object * >	ofbx::parseGeometryTangents (GeometryImpl *geom, const Element &element, const std::vector< int > &original_indices, const std::vector< int > &to_old_indices, Temporaries *tmp)
static OptionalError< Object * >	ofbx::parseGeometryColors (GeometryImpl *geom, const Element &element, const std::vector< int > &original_indices, const std::vector< int > &to_old_indices, Temporaries *tmp)
static OptionalError< Object * >	ofbx::parseGeometryNormals (GeometryImpl *geom, const Element &element, const std::vector< int > &original_indices, const std::vector< int > &to_old_indices, Temporaries *tmp)
static OptionalError< Object * >	ofbx::parseGeometry (const Element &element, bool triangulate, GeometryImpl *geom)
static bool	ofbx::isString (const Property *prop)
static bool	ofbx::isLong (const Property *prop)
static bool	ofbx::parseConnections (const Element &root, Scene *scene)
static bool	ofbx::parseTakes (Scene *scene)
static float	ofbx::getFramerateFromTimeMode (FrameRate time_mode, float custom_frame_rate)
static void	ofbx::parseGlobalSettings (const Element &root, Scene *scene)
void	ofbx::sync_job_processor (JobFunction fn, void *, void *data, u32 size, u32 count)
static bool	ofbx::parseObjects (const Element &root, Scene *scene, u64 flags, Allocator &allocator, JobProcessor job_processor, void *job_user_ptr)
IScene *	ofbx::load (const u8 *data, int size, u64 flags, JobProcessor job_processor, void *job_user_ptr)
const char *	ofbx::getError ()

Macro Definition Documentation

get_property

#define get_property	(		name,
			field,
			type,
			getter
	)

Value:

        if(node->first_property->value == name) \
        { \
            IElementProperty* prop = node->getProperty(4); \
            if (prop) \
            { \
                DataView value = prop->getValue(); \
                scene->m_settings.field = (type)value.getter(); \
            } \
        }

get_time_property

#define get_time_property	(		name,
			field,
			type,
			getter
	)

Value:

        if(node->first_property->value == name) \
        { \
            IElementProperty* prop = node->getProperty(4); \
            if (prop) \
            { \
                DataView value = prop->getValue(); \
                scene->m_settings.field = fbxTimeToSeconds((type)value.getter()); \
            } \
        }
