detail::dtoa_impl Namespace Reference

implements the Grisu2 algorithm for binary to decimal floating-point conversion. More...

Classes
struct	boundaries
struct	cached_power
struct	diyfp

Functions
template<typename Target, typename Source>
Target	reinterpret_bits (const Source source)
template<typename FloatType>
boundaries	compute_boundaries (FloatType value)
cached_power	get_cached_power_for_binary_exponent (int e)
int	find_largest_pow10 (const std::uint32_t n, std::uint32_t &pow10)
void	grisu2_round (char *buf, int len, std::uint64_t dist, std::uint64_t delta, std::uint64_t rest, std::uint64_t ten_k)
void	grisu2_digit_gen (char *buffer, int &length, int &decimal_exponent, diyfp M_minus, diyfp w, diyfp M_plus)
void	grisu2 (char *buf, int &len, int &decimal_exponent, diyfp m_minus, diyfp v, diyfp m_plus)
template<typename FloatType>
void	grisu2 (char *buf, int &len, int &decimal_exponent, FloatType value)
JSON_HEDLEY_RETURNS_NON_NULL char *	append_exponent (char *buf, int e)
	appends a decimal representation of e to buf
JSON_HEDLEY_RETURNS_NON_NULL char *	format_buffer (char *buf, int len, int decimal_exponent, int min_exp, int max_exp)
	prettify v = buf * 10^decimal_exponent

Variables
constexpr int	kAlpha = -60
constexpr int	kGamma = -32

Detailed Description

implements the Grisu2 algorithm for binary to decimal floating-point conversion.

This implementation is a slightly modified version of the reference implementation which may be obtained from http://florian.loitsch.com/publications (bench.tar.gz).

The code is distributed under the MIT license, Copyright (c) 2009 Florian Loitsch.

For a detailed description of the algorithm see:

[1] Loitsch, "Printing Floating-Point Numbers Quickly and Accurately with Integers", Proceedings of the ACM SIGPLAN 2010 Conference on Programming Language Design and Implementation, PLDI 2010 [2] Burger, Dybvig, "Printing Floating-Point Numbers Quickly and Accurately", Proceedings of the ACM SIGPLAN 1996 Conference on Programming Language Design and Implementation, PLDI 1996

Function Documentation

append_exponent()

JSON_HEDLEY_RETURNS_NON_NULL char * detail::dtoa_impl::append_exponent ( char * buf, int e )

inline

appends a decimal representation of e to buf

Returns

a pointer to the element following the exponent.

Precondition

-1000 < e < 1000

Definition at line 17835 of file json.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

compute_boundaries()

template<typename FloatType>

boundaries detail::dtoa_impl::compute_boundaries

(

FloatType

value

)

Compute the (normalized) diyfp representing the input number 'value' and its boundaries.

Precondition

value must be finite and positive

Definition at line 17096 of file json.hpp.

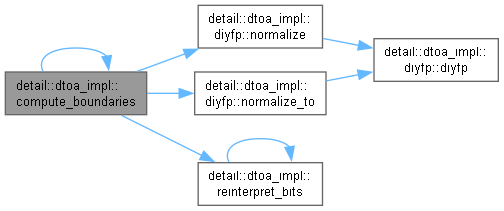

Here is the call graph for this function:

Here is the caller graph for this function:

find_largest_pow10()

int detail::dtoa_impl::find_largest_pow10 ( const std::uint32_t n, std::uint32_t & pow10 )

inline

For n != 0, returns k, such that pow10 := 10^(k-1) <= n < 10^k. For n == 0, returns 1 and sets pow10 := 1.

Definition at line 17399 of file json.hpp.

Here is the call graph for this function:

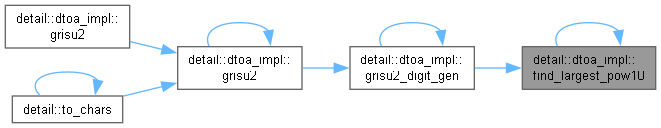

Here is the caller graph for this function:

format_buffer()

JSON_HEDLEY_RETURNS_NON_NULL char * detail::dtoa_impl::format_buffer ( char * buf, int len, int decimal_exponent, int min_exp, int max_exp )

inline

prettify v = buf * 10^decimal_exponent

If v is in the range [10^min_exp, 10^max_exp) it will be printed in fixed-point notation. Otherwise it will be printed in exponential notation.

Precondition

min_exp < 0

max_exp > 0

Definition at line 17887 of file json.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

get_cached_power_for_binary_exponent()

cached_power detail::dtoa_impl::get_cached_power_for_binary_exponent ( int e )

inline

For a normalized diyfp w = f * 2^e, this function returns a (normalized) cached power-of-ten c = f_c * 2^e_c, such that the exponent of the product w * c satisfies (Definition 3.2 from [1])

 alpha <= e_c + e + q <= gamma.

Definition at line 17235 of file json.hpp.

Here is the call graph for this function:

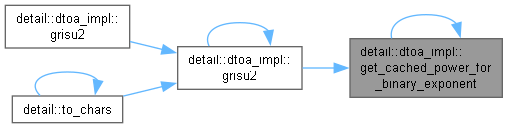

Here is the caller graph for this function:

grisu2() [1/2]

void detail::dtoa_impl::grisu2 ( char * buf, int & len, int & decimal_exponent, diyfp m_minus, diyfp v, diyfp m_plus )

inline

v = buf * 10^decimal_exponent len is the length of the buffer (number of decimal digits) The buffer must be large enough, i.e. >= max_digits10.

Definition at line 17735 of file json.hpp.

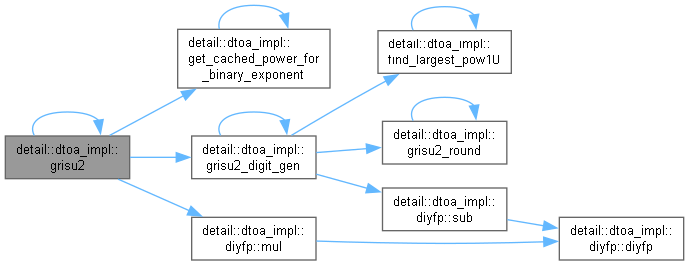

Here is the call graph for this function:

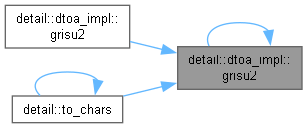

Here is the caller graph for this function:

grisu2() [2/2]

template<typename FloatType>

void detail::dtoa_impl::grisu2	(	char *	buf,
		int &	len,
		int &	decimal_exponent,
		FloatType	value )

v = buf * 10^decimal_exponent len is the length of the buffer (number of decimal digits) The buffer must be large enough, i.e. >= max_digits10.

Definition at line 17795 of file json.hpp.

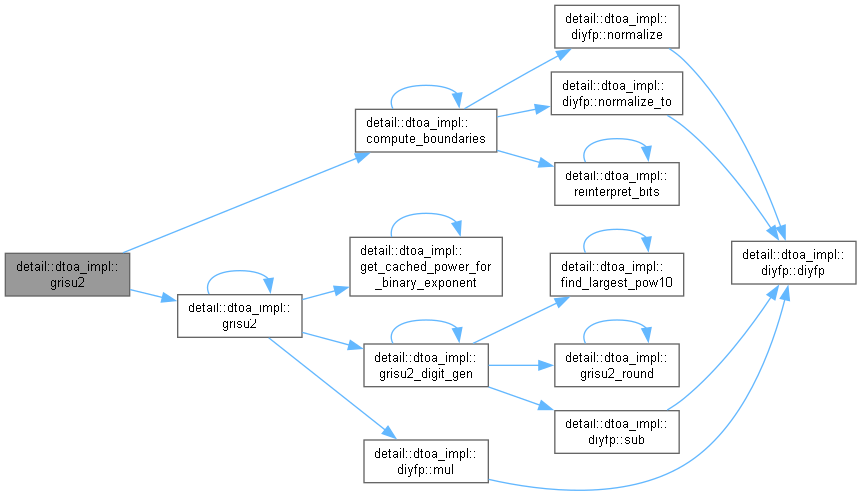

Here is the call graph for this function:

grisu2_digit_gen()

void detail::dtoa_impl::grisu2_digit_gen ( char * buffer, int & length, int & decimal_exponent, diyfp M_minus, diyfp w, diyfp M_plus )

inline

Generates V = buffer * 10^decimal_exponent, such that M- <= V <= M+. M- and M+ must be normalized and share the same exponent -60 <= e <= -32.

Definition at line 17494 of file json.hpp.

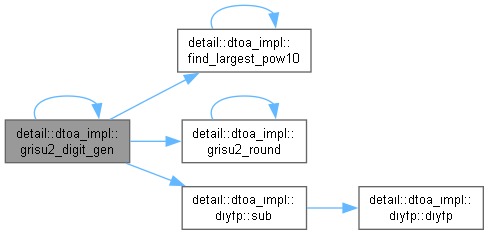

Here is the call graph for this function:

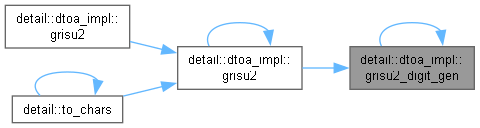

Here is the caller graph for this function:

grisu2_round()

void detail::dtoa_impl::grisu2_round ( char * buf, int len, std::uint64_t dist, std::uint64_t delta, std::uint64_t rest, std::uint64_t ten_k )

inline

Definition at line 17453 of file json.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

reinterpret_bits()

template<typename Target, typename Source>

Target detail::dtoa_impl::reinterpret_bits

(

const Source

source

)

Definition at line 16955 of file json.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

kAlpha

int detail::dtoa_impl::kAlpha = -60

constexpr

Definition at line 17218 of file json.hpp.

kGamma

int detail::dtoa_impl::kGamma = -32

constexpr

Definition at line 17219 of file json.hpp.
