detail::dtoa_impl::diyfp Struct Reference

#include <json.hpp>

Public Member Functions
constexpr	diyfp (std::uint64_t f_, int e_) noexcept

Static Public Member Functions
static diyfp	sub (const diyfp &x, const diyfp &y) noexcept
	returns x - y
static diyfp	mul (const diyfp &x, const diyfp &y) noexcept
	returns x * y
static diyfp	normalize (diyfp x) noexcept
	normalize x such that the significand is >= 2^(q-1)
static diyfp	normalize_to (const diyfp &x, const int target_exponent) noexcept
	normalize x such that the result has the exponent E

Public Attributes
std::uint64_t	f = 0
int	e = 0

Static Public Attributes
static constexpr int	kPrecision = 64

Detailed Description

Definition at line 16964 of file json.hpp.

Constructor & Destructor Documentation

diyfp()

detail::dtoa_impl::diyfp::diyfp ( std::uint64_t f_, int e_ )

inlineconstexprnoexcept

Definition at line 16971 of file json.hpp.

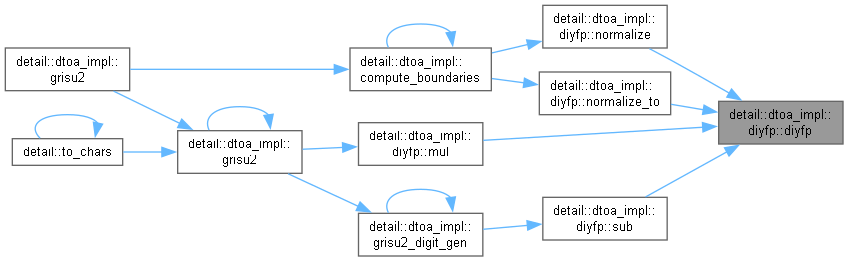

Here is the caller graph for this function:

Member Function Documentation

mul()

static diyfp detail::dtoa_impl::diyfp::mul ( const diyfp & x, const diyfp & y )

inlinestaticnoexcept

returns x * y

Note

The result is rounded. (Only the upper q bits are returned.)

Definition at line 16989 of file json.hpp.

Here is the call graph for this function:

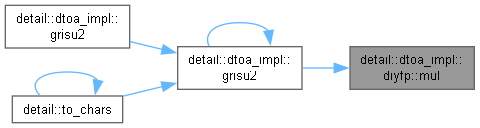

Here is the caller graph for this function:

normalize()

static diyfp detail::dtoa_impl::diyfp::normalize ( diyfp x )

inlinestaticnoexcept

normalize x such that the significand is >= 2^(q-1)

Precondition

x.f != 0

Definition at line 17054 of file json.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

normalize_to()

static diyfp detail::dtoa_impl::diyfp::normalize_to ( const diyfp & x, const int target_exponent )

inlinestaticnoexcept

normalize x such that the result has the exponent E

Precondition

e >= x.e and the upper e - x.e bits of x.f must be zero.

Definition at line 17071 of file json.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

sub()

static diyfp detail::dtoa_impl::diyfp::sub ( const diyfp & x, const diyfp & y )

inlinestaticnoexcept

returns x - y

Precondition

x.e == y.e and x.f >= y.f

Definition at line 16977 of file json.hpp.

Here is the call graph for this function:

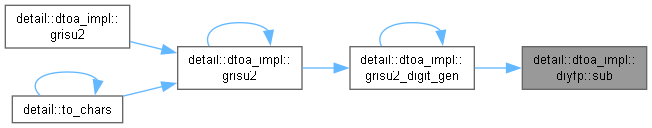

Here is the caller graph for this function:

Member Data Documentation

e

int detail::dtoa_impl::diyfp::e = 0

Definition at line 16969 of file json.hpp.

f

std::uint64_t detail::dtoa_impl::diyfp::f = 0

Definition at line 16968 of file json.hpp.

kPrecision

int detail::dtoa_impl::diyfp::kPrecision = 64

staticconstexpr

Definition at line 16966 of file json.hpp.

---

The documentation for this struct was generated from the following file:

• D:/Peridyno/peridyno/src/Rendering/GUI/WtGUI/NodeEditor/json.hpp
